The Chipflasher Board

A Handmade Piece of Artwork

Our first flashers have been created from scratch. Every detail has been placed thoroughly and finally it turns out that these devices are a handmade piece of artwork. We still keep producing devices like this in order to prove the Do-it-Yourself concept, however, switching to a more efficient production with pcb-layout files is in progress.

Zerocat Chipflasher, board-edition-1, handmade

Free-Design Hardware

The Zerocat Chipflasher aims to be free-design as much as possible, that’s why it relies on the Parallax Propeller microcontroller. The internal chip design files of this controller have been released under the GPLv3 in 2011 by Parallax (compare to Points of Interest). The chipflasher’s board circuit tries to not rely on closed source microchips. Instead, the use of discrete components is preferred.

Do it Yourself

If you have some experience in soldering and got the equipment, you can make it yourself. As a starting point, see these snapshots to get the idea:

Board Circuit

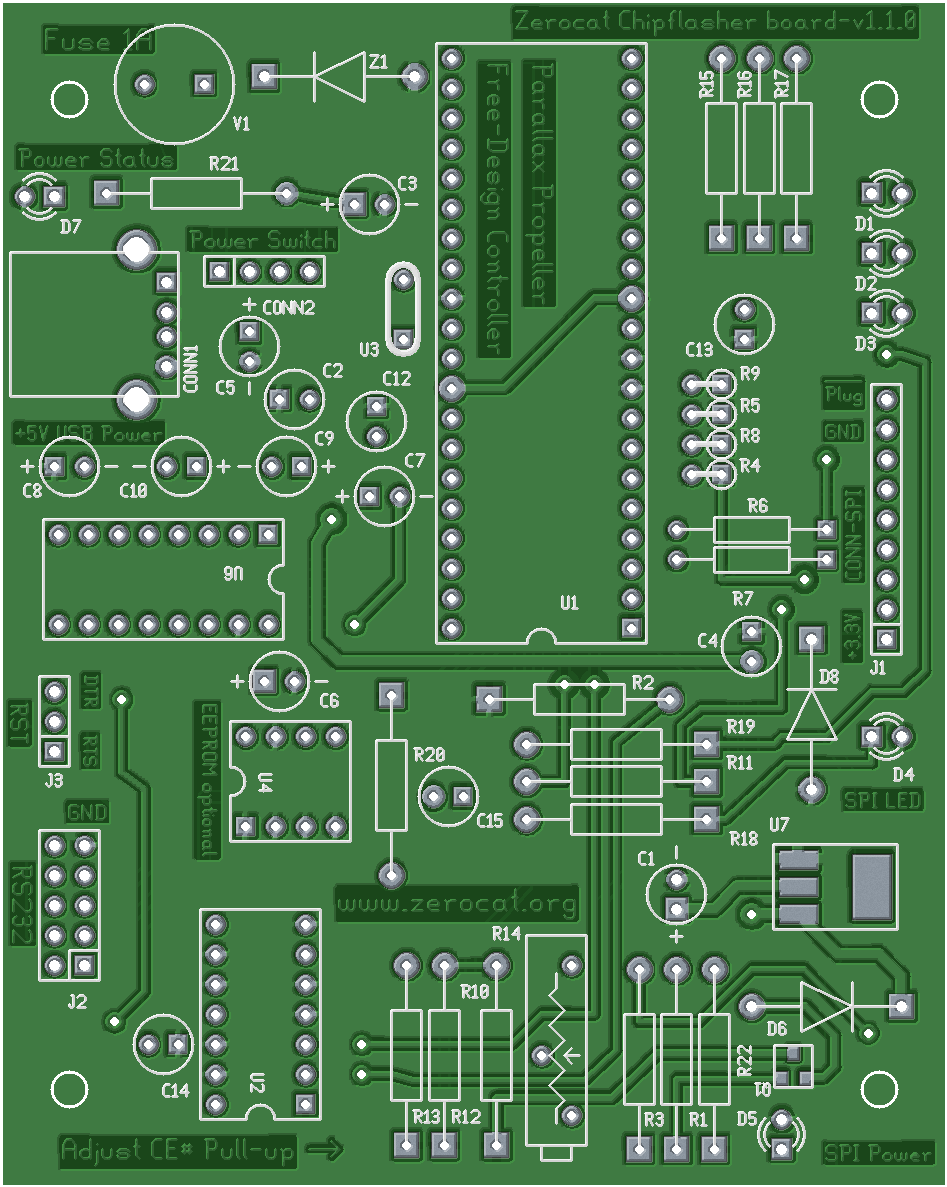

PCB Layout

We recommend to fix a non-critical bug manually: The unused input of the RS232 driver should be tied to GND.

Manual Bug Fix: Unused Pin should be tied to GND

More in depth information is available through a couple of source files and related pages:

• Source File Previews (PNG-Images)
  • board.sch.png
  • cables.sch.png
  • board.pcb.png
  • front-label.png
• Source Files
  • board.sch (gEDA/gschem circuit schematic)
  • cables.sch (gEDA/gschem circuit schematic)
  • board.pcb (PCB layout file, created with PCB)
  • front-label.svg (Scalable Vector Graphic, created with Inkscape.)
  • front-panel.dxf (Parametric 2D Vector Graphic, created with LibreCAD.)
• Bill of Material Tables
  • Bill of Material (board.sch)
  • Bill of Material (cables.sch)
  • Bill of Material (Case & Clips)
• Additional Pages
  • Board Layout (if handmade, without pcb)
  • RS232 Cable Pinouts

We tried a selfmade PCB, milled with a CNC-machine, some time ago and learned from that. Please see The First PCB Prototype.

Available from the Shop

The easiest way to obtain the Zerocat Chipflasher is to buy one from Zerocat, of course. Check the Zerocat Website for shop information, please. If none is available, send a request.

Zerocat Chipflasher, board-edition-1, with PCB

Zerocat Chipflasher, board-edition-1, in Stock

---
